PLC Splitter 1×64 Module type

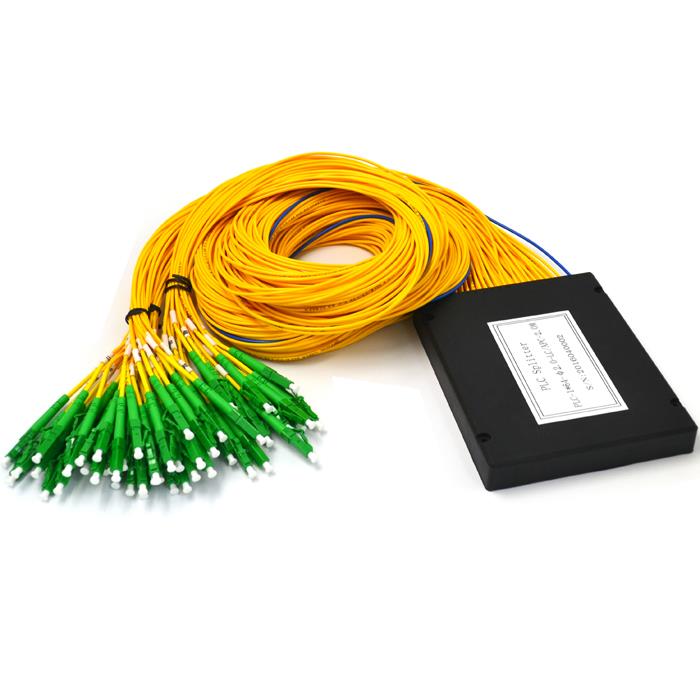

PLC Splitter 1×64 Module type True-Tech PLC Splitter 1×64 Module type 1×64 Planar Lightwave Circuit (PLC) Mini Module Splitter without connectors. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability. Constructed with the highest quality Corning® Clearcurve Bend Insensitive Fiber (BIF) glass for the greatest installation speed and efficiency with high transmission rates and virtually no distortion. Commonly used in small spaces in a fiber splice closure or joint box in Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., GPON). 900 μm input/output G.657A1 No connectors, allows easily installation in fiber splice closure or joint box saving space Ideal for GPON, FTTH/FTTx Corning® Clearcurve XB Bend Insensitive Fiber (BIF) glass Full Specs Datasheet Construction Configuration Type: 1×64 Fiber Type: G.657A1 Glass: Corning® Clearcurve XB Bend Insensitive Fiber (BIF) Fiber Diameter: 900 μm Fiber Length: 1 m input/1 m output Connector Type: None Performance Operating Wavelength: 1260-1650 nm Insertion Loss: ≤16.9 dB Polarization Dependent Loss (PDL): ≤0.3 dB Return Loss: ≥55 dB Uniformity: ≤1.5 dB Directivity: ≥55 dB Operating Temperature Range: -20 to 70°C (-4 to 158°F) Storage Temperature Range: -20 to 70°C (-4 to 158°F) Approvals Telcordia GR-1221 and GR-1209 Manufacturing Facility: ISO-9001 and TUV Certified
