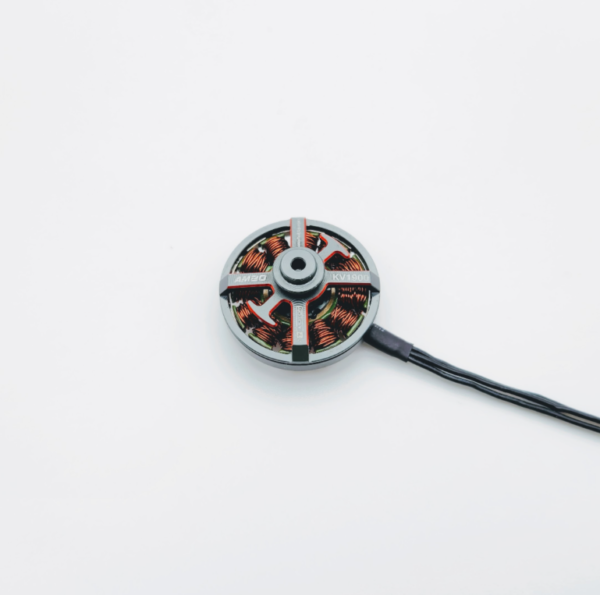

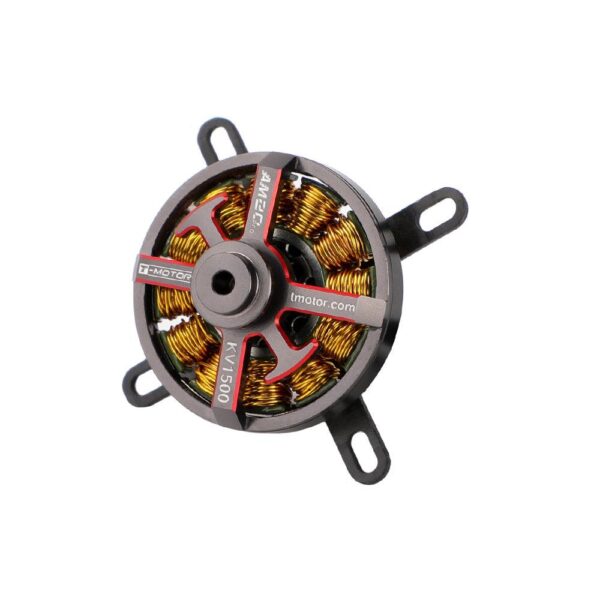

AM20 F3P-A 1500KV 10G Brushless Outrunner Motor For Indoor Aircraft Race

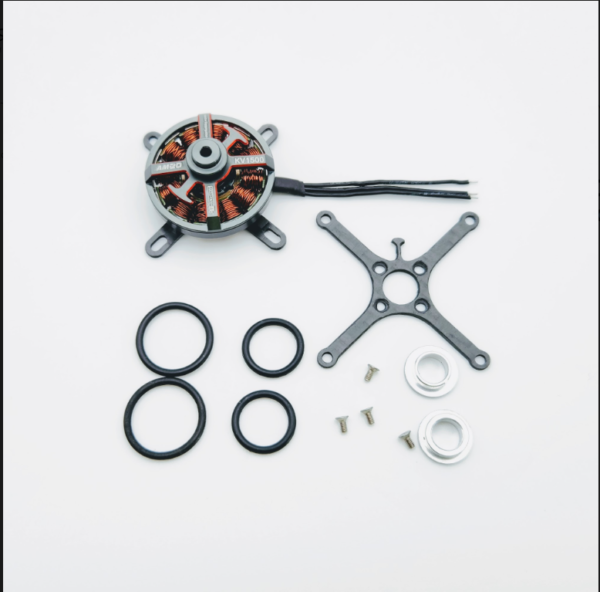

T-HOBBY AM20 F3P-A 1500KV Brushless Outrunner Motor The T-HOBBY AM20 F3P-A 1500KV is a next-generation brushless motor designed for F3P indoor precision flight. With exceptional craftsmanship and refined engineering. the AM20 represents a significant evolution in performance. efficiency. and reliability for lightweight aircraft.Every detail is carefully optimized — from curved rare-earth magnets. ultra-tight air gaps. and high-tolerance assembly — ensuring unmatched smoothness and responsiveness in flight. Designed specifically for F3P-style slow flight. the AM20 pairs perfectly with T-HOBBY FS10x3.1 carbon fiber propellers for maximum stability and efficiency.Two carbon fiber motor mounts are included: one for standard outrunner configurations and another for F3P-standard mounting patterns. ensuring compatibility with most indoor aircraft setups. The AM20 also features an integrated propsaver with a 5.5mm flange. plus 7mm and 8mm adapter bushings. along with two O-ring options and an extra set of mounting screws for flexible installation.The motor is available in two winding options — 1500KV (optimized for 2S) and 1900KV (optimized for 1S) — giving pilots the freedom to fine-tune their performance for precision. control. and efficiency. ———————————————————————————————————————— Specifications Specification Value Model AM20-1500KV KV 1500KV Configuration 12N14P Stator Diameter 22mm Stator Length 2.2mm Shaft Diameter Φ3.0mm (Hollow) Motor Dimensions (Dia. × Len) Φ25.4mm × 15mm Weight 10.3g Battery Compatibility 1–2S LiPo Key Features • High-precision build for ultra-smooth F3P flight. • Two optimized KV versions (1S & 2S). • Integrated propsaver with multiple adapter options. • Dual carbon mounting plates for versatile installation. • Perfect match with T-HOBBY FS10x3.1 carbon props. Unique Point Very lightweight only 10.1g Considerate design with easy installation Very light and easier to accomplish the task Good throttle linear Recommended Frame: F3P-A-Frame ESC: TMOTOR Fixed Wing AM06A ESC Compatible Propellers: TMOTOR T10x3.1 Carbon propeller   Specification
