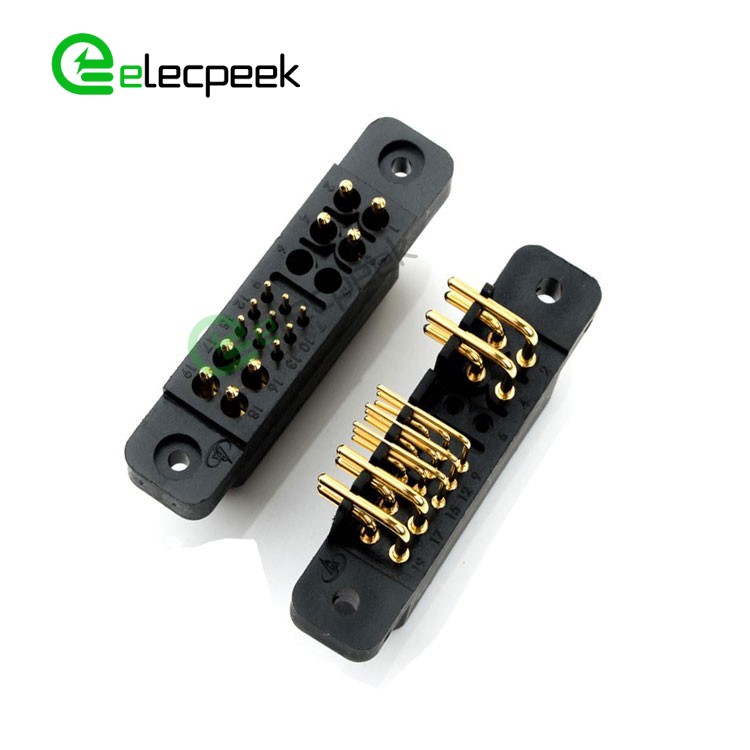

4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B)

The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength. 4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B) Feature Product Type Gender: Female, Male Orientation: Straight Number Of Positions: 4 Pin Mounting Type: Panel Mount Contact Termination: Crimp Shell Material: PBT Contact Material: Copper, Copper Alloy Contact Finish: Gold Plating, Silver Plating Electrical Rated Current: 125A Withstand Voltage: 1500V Insulation Resistance: ≥1000MΩ Contact Resistance: ≤1.0MΩ Mechanical Mating Cycles: > 1000 Mating Cycles Operating Temperature: -55℃~ 125℃ 4 Pin 125A Power High Current Heavy Load Drawer Connector PCB tail(B) Drawing
