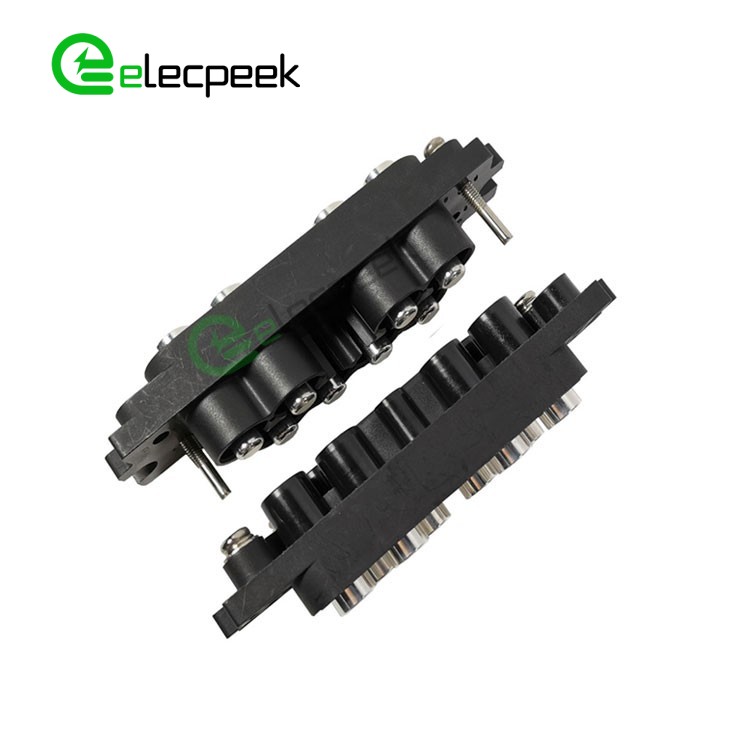

7 Pin 35A High Current Heavy Load Power Drawer Connector 3000V

The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength. 7 Pin 35A High Current Heavy Load Power Drawer Connector 3000V Feature Product Type Gender: Female, Male Orientation: Right Angle, Straight Number Of Positions: 7 Pin Mounting Type: Panel Mount Contact Termination: Crimp, Solder, Solder Cup Shell Material: PBT Contact Material: Copper, Copper Alloy Contact Finish: Gold Plating, Silver Plating Contact Quantity: 3Pin Power (12#:35A) 4Pin Signal (20#:5A) Electrical Rated Current: 35A Withstand Voltage: 3000V Insulation Resistance: ≥1000MΩ Contact Resistance: ≤1.0MΩ Mechanical Mating Cycles: > 1000 Mating Cycles Operating Temperature: -55℃~ 125℃ 7 Pin 35A High Current Heavy Load Power Drawer Connector 3000V Drawing
